Introduction
Definition of GPR Scanning
Ground Penetrating Radar (GPR) is a non-invasive, geophysical method that uses radar pulses to image the subsurface. It’s widely used to detect and map underground structures and features without the need for excavation.
Importance of GPR Scanning
GPR scanning is crucial for various industries due to its ability to provide accurate, real-time information about subsurface conditions. It is essential for ensuring safety, improving efficiency, and reducing costs in construction, archaeology, and environmental studies.
Common Uses of GPR Scanning
GPR scanning is used in a wide range of applications, including locating utilities, inspecting concrete structures, archaeological investigations, environmental assessments, and analyzing transportation infrastructure.
What is GPR Scanning?
Technology Behind GPR
Ground Penetrating Radar works by emitting electromagnetic waves into the ground. When these waves encounter different subsurface materials, they are reflected back to the surface, where they are detected by a receiver. The data collected is then processed to create detailed images of the subsurface structures.
History of GPR Development
GPR technology has evolved significantly since its inception in the early 20th century. Initially developed for military applications, it has since been adapted for commercial and industrial uses, with advancements in computer processing power greatly enhancing its capabilities.
How GPR Works
The basic principle of GPR involves transmitting a radio wave into the ground and recording the time it takes for the reflected signal to return. The depth and characteristics of the subsurface features are determined based on the travel time and the strength of the reflected signals.
Technical Specifications of GPR Equipment

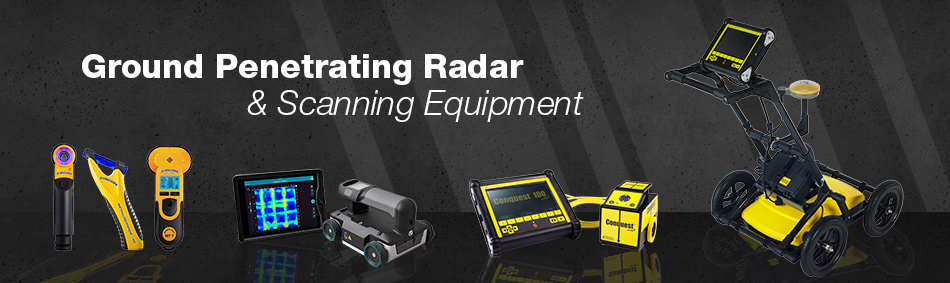

Key Components
GPR systems typically consist of three main components: the antenna, the control unit, and the data storage/display unit. The antenna transmits and receives signals, the control unit processes the data, and the display unit visualizes the results.
Types of GPR Systems
There are several types of GPR systems, each suited to different applications. These include hand-held units, cart-based systems, and vehicle-mounted systems, with variations designed for specific industries and depth requirements.
Frequency Ranges and Their Applications
The frequency of the radar signal affects the depth of penetration and the resolution of the images. Low-frequency GPR systems (10-500 MHz) penetrate deeper but have lower resolution, making them ideal for geological studies. High-frequency systems (500 MHz to 1 GHz) offer higher resolution but shallower penetration, suitable for concrete inspection and utility detection.
Applications of GPR Scanning
Construction Industry
In construction, GPR scanning services is used to locate rebar, post-tension cables, and conduits within concrete structures. It helps prevent accidental damage during drilling and cutting activities.
Archaeology
Archaeologists use GPR to detect and map buried artifacts, structures, and features without disturbing the site. It is a valuable tool for non-invasive exploration and documentation.
Environmental Studies
GPR assists in environmental assessments by detecting underground storage tanks, monitoring groundwater, and identifying soil contamination.
Utility Detection
Utility companies use GPR to locate underground pipes, cables, and other infrastructure, reducing the risk of damaging utilities during excavation and maintenance work.
Transportation Infrastructure
GPR is employed in the inspection and maintenance of roads, bridges, and airports, helping to identify subsurface issues that could compromise structural integrity.
Benefits of GPR Scanning
Non-Invasive Nature
One of the main advantages of GPR is its non-invasive nature. It allows for the examination of subsurface conditions without the need for digging or drilling, preserving the integrity of the site.
Accuracy and Reliability
GPR provides accurate and reliable data, which is crucial for making informed decisions in construction, archaeology, and other fields. The ability to visualize subsurface features in real-time enhances its utility.
Cost-Effectiveness
Compared to other subsurface exploration methods, GPR is often more cost-effective. It reduces the need for extensive excavation and minimizes the risk of damaging existing structures or utilities.
Factors Influencing GPR Scanning Cost
Type of Project
The cost of GPR scanning can vary significantly depending on the type of project. For instance, scanning a small residential property will generally cost less than a large commercial or industrial site.
Area Size
The size of the area to be scanned is a major cost factor. Larger areas require more time and resources, increasing the overall cost.
Depth of Scanning Required
Deeper scans require more powerful equipment and longer data acquisition times, which can increase costs. The desired depth of investigation is crucial in determining the overall expense.
Equipment and Technology Used
The type and quality of GPR equipment used also affect the cost. Advanced systems with higher resolution and deeper penetration capabilities are typically more expensive to operate.
Operator Expertise
The expertise of the operator can influence the cost as well. Experienced professionals who can accurately interpret the data and provide detailed reports may charge higher fees for their services.
Cost Breakdown
Equipment Costs
The cost of GPR equipment can range from a few thousand to over a hundred thousand dollars, depending on the system’s capabilities and specifications.
Labor Costs
Labor costs include the fees for the operators and any additional personnel required for the project. This can vary based on the complexity and duration of the scan.
Additional Service Fees
Additional fees may include travel expenses, data processing, and report generation. These costs can add up, especially for projects in remote locations or those requiring detailed analysis.
Maintenance and Calibration Costs
Regular maintenance and calibration of GPR equipment are essential for ensuring accuracy and reliability. These ongoing costs can influence the overall expense of the GPR scanning company.
Comparing GPR Costs with Other Methods
X-Ray Imaging
Compared to GPR, X-ray imaging can be more expensive and is typically limited to specific applications, such as concrete inspection. X-rays require special safety precautions and cannot penetrate as deeply as GPR.
Electromagnetic Methods
Electromagnetic methods, such as electromagnetic induction (EMI), can be less expensive but may not provide the same level of detail as GPR. They are often used in conjunction with GPR for comprehensive subsurface investigations.
Traditional Excavation
Traditional excavation is often the most expensive and time-consuming method for subsurface exploration. It involves significant labor, equipment, and restoration costs, making GPR a more cost-effective alternative in many cases.
Challenges and Limitations of GPR
Soil Conditions
Soil conditions, such as moisture content and mineral composition, can affect GPR performance. High clay content or wet soils can reduce signal penetration and clarity.
Depth Penetration Limits
While GPR is effective for many applications, it has depth penetration limits. Typically, GPR can penetrate up to 100 feet in ideal conditions, but practical depths are often shallower.
Interpretation Complexity
Interpreting GPR data requires expertise. The data can be complex, and accurate interpretation is crucial for reliable results. Misinterpretation can lead to incorrect conclusions and decisions.
Recent Innovations in GPR Technology
Advanced Software for Data Interpretation
Recent advancements in software have greatly improved the ability to interpret GPR data. Enhanced algorithms and machine learning techniques help in generating more accurate and detailed subsurface images.
Improved Sensor Technology
Innovations in sensor technology have led to the development of more sensitive and accurate GPR systems. These improvements have expanded the range of applications and increased the reliability of the results.
Integration with Other Technologies
GPR is increasingly being integrated with other technologies, such as GPS and GIS, to provide more comprehensive and detailed subsurface maps. This integration enhances the utility and effectiveness of GPR in various applications.
Future Prospects of GPR Scanning
Potential Developments
Future developments in GPR technology may include further advancements in sensor sensitivity, data processing algorithms, and real-time imaging capabilities. These innovations could expand the range of applications and improve accuracy.
Emerging Applications
As GPR technology continues to evolve, new applications are likely to emerge. These may include enhanced environmental monitoring, more detailed archaeological explorations, and advanced infrastructure inspection techniques.
Expert Insights on GPR Scanning Costs
Industry Expert Quotes
Industry experts emphasize the value of GPR for its non-invasive nature and cost-effectiveness. According to Dr. John Smith, a leading geophysicist, “GPR provides unparalleled insights into subsurface conditions at a fraction of the cost of traditional methods.”
Cost Predictions
Experts predict that while the initial cost of GPR scanning may remain relatively stable, advances in technology and increased competition could drive down prices over time, making it more accessible for a wider range of applications.
FAQs About GPR Scanning Costs
Factors such as project type, area size, depth of scanning, equipment used, and operator expertise all influence the overall cost of GPR scanning. In some cases, GPR scanning may be covered by insurance, particularly if it is part of a larger construction or renovation project. It's best to check with your insurance provider for specific coverage details. GPR equipment should be calibrated regularly, typically once a year, to ensure accuracy and reliability. Frequent calibration is essential for maintaining the quality of the data collected. While there are GPR systems available for rental, interpreting the data requires expertise. It is generally recommended to hire professional operators to ensure accurate and reliable results. How do different factors affect the cost?
Is GPR scanning covered by insurance?
How often should GPR equipment be calibrated?
Can GPR scanning be a DIY project?
Conclusion
Summary of Key Points
GPR scanning is a versatile, non-invasive technology that provides detailed subsurface images for various applications. While costs can vary based on several factors, GPR offers a cost-effective alternative to traditional methods.
Final Thoughts on GPR Scanning Costs
Understanding the costs associated with GPR scanning is crucial for planning and budgeting projects effectively. With ongoing advancements in technology and increasing accessibility, GPR remains a valuable tool for subsurface exploration.
